Product Description：
Name：IEC60695 Single Cable Vertical Burn Testing Equipment
Type：BND-DDR
Product Description
IEC60695 Single Cable Vertical Flame Testing Equipment
Introduction:
The single cable vertical burning test instrument is conformance to IEC60332 and several standards, it use specified size Bunsen burner and propane, vertical burn the sample at certain height and angle, according to the ignition time, burning time and burning length to determine whether the sample has danger on fire.
The single cable vertical burning test instrument is mainly for accessing the flammability of single cable which conductor's diameter is bigger than 8mm (sectional area bigger than 0.5mm2) or smaller than (sectional area smaller than 0.5mm2) . It is applied to lighting equipment, low-voltage apparatus, household appliances, electric tool, electro-technical instruments and parts for researching, manufacturing and quality inspection.
Detailed Images
| Burner | 1pcs Inner diameter 2mm ± 0.5mm and 1pcs inner diameter 9.5mm ± 0.5mm Bunsen burner |
| Test angle | 45° |
| Burn height | 20mm ± 2mm to 190mm±1mm adjustable |
| Ignition time | 0-999.9s±0.1s adjustable |
| Burning time | 0-999.9s±0.1s，auto record, manual stop |
| Gas | 98% propane (can be replaced by liquefied petroleum gas in normal case) |
| Flow pressure | Double-range recording meter and pressure gauge(gas and air) |
| 385x204x360 mm | |
| Temperature range | 0~1000℃ |
| Fire temperature requirement | From 100℃±5℃ rise to 700℃±3℃ in 45sec±2sec |
| Thermometer | Φ0.5mm（K type） |
| Process | Auto test, no individual ventilation |
| Standard | IEC60332-1 GB/T18380.11 GB/T18380.12 GB/T18380.21 GB/T18380.22 |
| Chamber dimension | 0.15 m3 , exclude door |
| Instrument dimension | 550x450x1380(mm) |
| Power supply | AC220V，50Hz，≤500W |

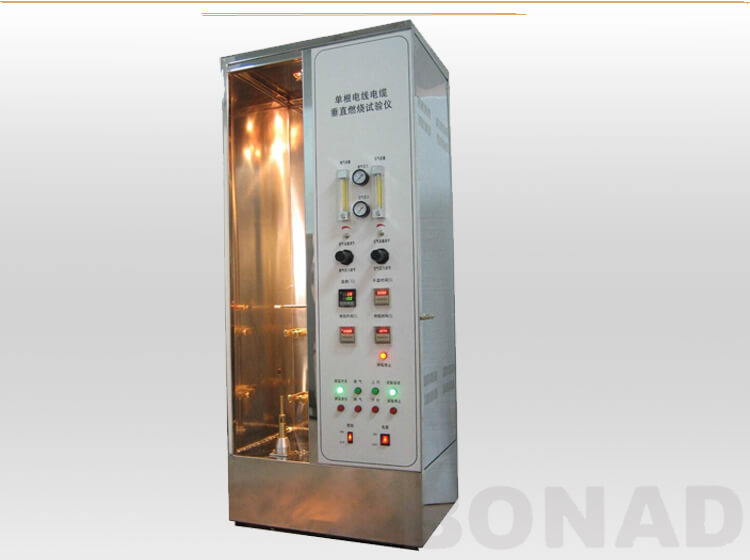

Product display
