Rugged Digital Temperature Sensor with SDI-12 Interface,RS485 Modbus-RTU

Product Description：

Name：Rugged Digital Temperature Sensor with SDI-12 Interface,RS485 Modbus-RTU

Type：DigiTEMP

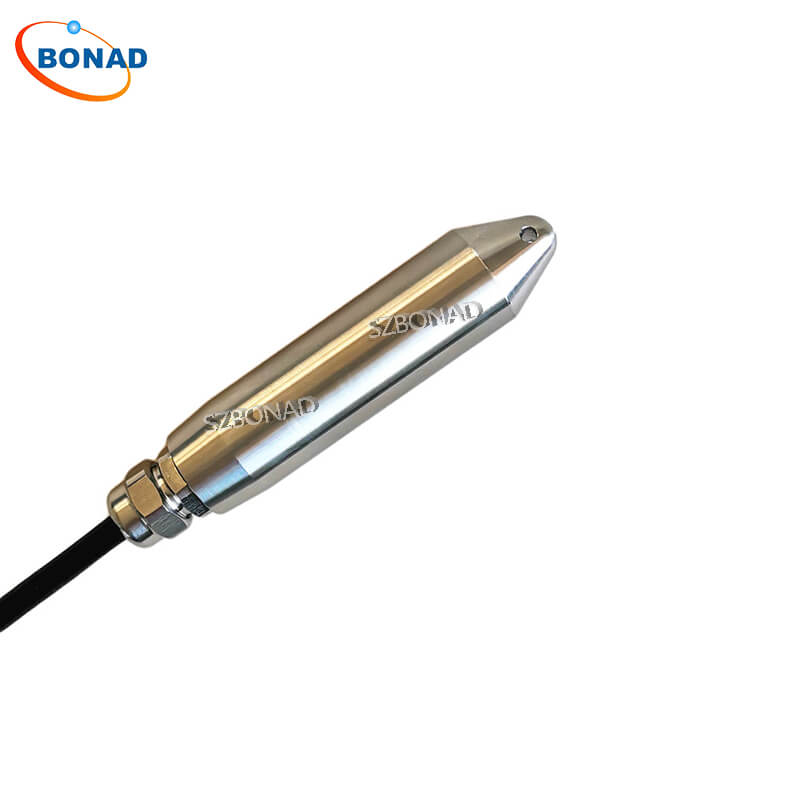

he DigiTEMP is a high precision digital temperature sensor ideal for high-accuracy readings in water, soil, and air. It features fully-potted components, robust stainless steel housing, making the sensor ideal for harsh environments. The sensor is small enough to easily deploy through standard 1” (2.5cm) PVC conduit with 8” (20.3cm) factory bend corners. It also offers a loop hole which can be used to mount weights or pull the sensor through pipes or other small areas.

The SDI-12 output provides universal compatibility with any SDI-12-enabled data logger and low power applications, or use a RS-485 physical interface for applications that require long cable runs or many sensors.

Features:

■ Integrated with high precision temperature sensor

■ Digital Output SDI-12/RS485 with built-in surge protection

■ Tough UV resistant polyurethane cable with waterblock

■ Stainless steel body with eyelet for weight or pull strings

■ Rugged housing and fully potted electronics – no risk of leaking

■ Low power consumption

■ Reverse power protection and Built-in TVS/ESD protection

■ ODM/OEM Service

Applications:

■ Soil Temperature

■ Streams

■ Surface Water

■ Stilling Wells

■ Dams

■ Aquaculture Tanks

Specification

Ordering Code
