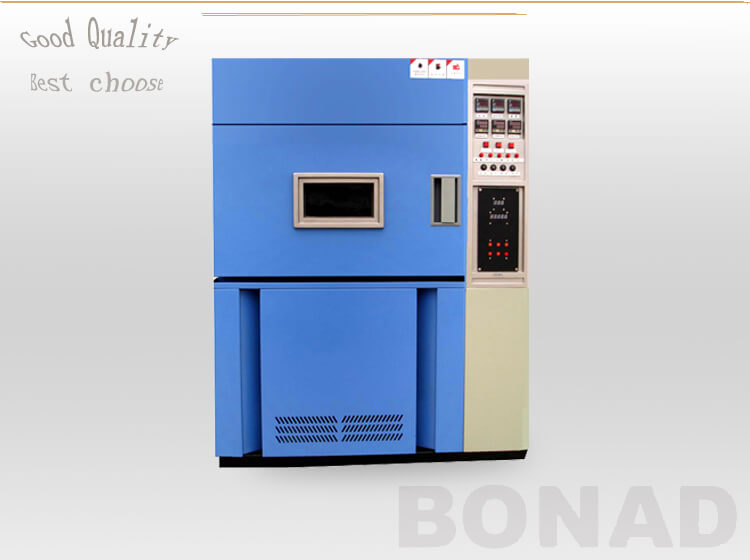

        Three box-type Thermal shock Test Chamber BND-HLR3


         Product Description：Name：Three box-type Thermal shock Test ChamberType：BND-HLR3Purpose:It is necessary test equipment for the aerospace, automotive, home appliances, research and other fields, used for examination and identification of parameters, performance and the use of adaptive of electrical, electronics, automotive electronics, materials and other products, after making high and low temperature impact test. Applied to schools, factories, military, research, and other organizations










        Description



        Product Description：
        Name：Three box-type Thermal shock Test Chamber
        Type：BND-HLR3

        Purpose:
        It is necessary test equipment for the aerospace, automotive, home
appliances, research and other fields, used for examination and identification
of parameters, performance and the use of adaptive of electrical, electronics,
automotive electronics, materials and other products, after making high and low
temperature impact test. Applied to schools, factories, military, research, and
other organizations

        Product Spec.and Technical parameter table
        model
        BND-HLR3-80
        BND-HLR3-100
        BND-HLR3-150
        performance
        Preheat room
        Upper limit preheat temperature
        200ºC
        Heating time
        ﹢20～﹢200ºC≈20min
        Precool room
        Lower limit precool temperature
        ﹣75ºC
        Cooling time
        ﹢20～﹣70ºC≈80min
        Workroom
        Temperature shock range
        (－55ºC～－10)～(50～﹢150ºC)
        Temperature fluctuation
        ≤±0.5ºC
        Temperature deviation
        ≤±2ºC
        Temperature revert time
        ≤5min
        Temperature revert

        conditions
        CJ602S3Ⅰ
        Condition 1
        sample load: 10kg with  plastic package IC；sample exposed: 30min in ﹢125ºC,30min in ﹣40ºC
        Condition 2
        sample load: 10kg with  plastic package IC；sampl exposed :30min in ﹢150ºC，5min in ambient temp,30min in ﹣55ºC
        CJ602S3Ⅱ
        Condition 1
        sample load: 20kg with  plastic package IC；sample exposed: 30min in ﹢125ºC,30min in ﹣40ºC
        Condition 2
        sample load: 20kg with  plastic package IC；sampl exposed :30min in ﹢150ºC，5min in ambient temp,30min in ﹣55ºC
        Condition 3
        sample load: 7.5kg with  plastic package IC；sample exposed: 30min in ﹢150ºC,30min in ﹣55ºC
        CJ603S3Ⅰ
        Condition 1
        sample load: 10kg with  plastic package IC；sample exposed: 30min in ﹢125ºC,30min in ﹣40ºC
        Condition 2
        sample load: 10kg with  plastic package IC；sampl exposed :30min in ﹢150ºC，5min in ambient temp,30min in ﹣55ºC
        CJ603S3Ⅱ
        Condition 1
        sample load: 20kg with  plastic package IC；sample exposed: 30min in ﹢125ºC,30min in ﹣40ºC
        Condition 2
        sample load: 20kg with  plastic package IC；sampl exposed :30min in ﹢150ºC，5min in ambient temp,30min in ﹣55ºC
        Condition 3
        sample load: 10kg with  plastic package IC；sample exposed: 30min in ﹢150ºC,30min in ﹣55ºC
        CJ605S3Ⅰ
        Condition 1
        sample load: 10kg with  plastic package IC；sample exposed: 30min in ﹢125ºC,30min in ﹣40ºC
        Condition 2
        sample load: 10kg with  plastic package IC；sampl exposed :30min in ﹢150ºC，5min in ambient temp,30min in ﹣55ºC
        CJ605S3Ⅱ
        Condition 1
        sample load: 20kg with  plastic package IC；sample exposed: 30min in ﹢125ºC,30min in ﹣40ºC
        Condition 2
        sample load: 20kg with  plastic package IC；sampl exposed :30min in ﹢150ºC，5min in ambient temp,30min in ﹣55ºC
        Condition 3
        sample load: 10kg with  plastic package IC；sampl exposed :30min in ﹢150ºC,30min in ﹣55ºC
        construction
        shell
        cooling steel plate,surface spray
        inner
        steel plate
        refrigeration
        insulate
        Rigid Polyurethane Foam+extra-fine glass-wool
        mode
        cascade refrigerating compressor
        compressor
        import compressor
        Cable port(mm)
        one on left side Φ50
        Controller
        color LCD touchscreen display
        recording equipment
        temperature recorder(optional)
        communication Interface
        RS485 interface,RS232 interface
        Workroom dimensions(mm)
        D
        400
        400
        500
        W
        500
        500
        600
        H
        400
        500
        500
        Exterior dimensions（mm)
        D
        2500
        2700
        2900
        W
        1000
        1000
        1130
        H
        1950
        2000
        2100
        Installed power(KW)
        Ⅰ
        35
        48
        50
        Ⅱ
        46
        56
        56
        Power Supply
        AC380V 50Hz Three-phase four-wire + protective earth wire
        Standard Configuration
        A copy of the instruction and test report for the product, A certificate and quality assurance.2 Shelf and 4 shelves .
        Standards Applied
        GJB150.5
