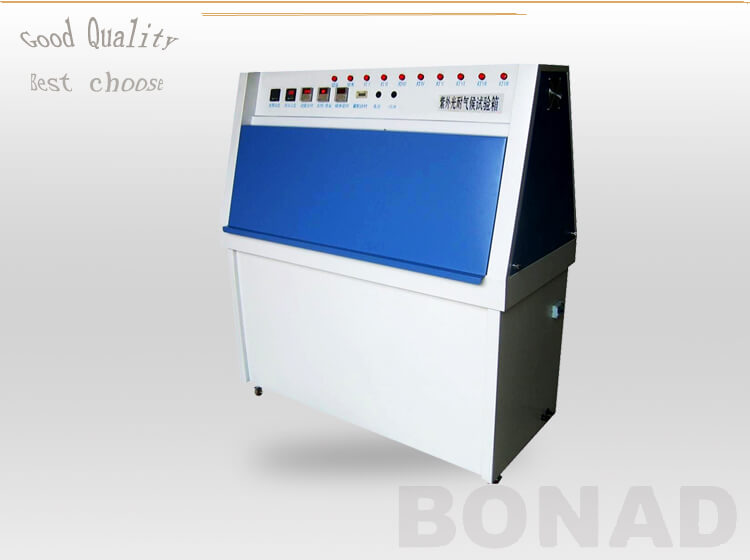

        UV-resistant climate test chamber BND-HZW

        This series is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources.The uv weather resistance test chamber can provide reliable aging test data to make the exact prediction of products‘ weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.
        Description

        Product Description:

        Name:UV-resistant climate test chamber

        Type:BND-HZW


        Purpose:

        This series is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources.The uv weather resistance test chamber can provide reliable aging test data to make the exact prediction of products' weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.

        Structure:

        1,The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of A3 steel plate sprayed with plastic.

        2, The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.


        Product Spec.and Technical parameter table

        model

        BND-ZW-01

        Stidio size(mm)

        D

        450

        W

        1170

        H

        500

        Dimensions

        D

        660

        W

        1330

        H

        1130

        Temperature Range

        RT+10ºC-70ºC

        Humidity Range

        75-98%RH

        Humidity uniformity

        ±2%

        Temperature uniformity

        ±2ºC

        Temperature fluctuation

        ±0.5ºC

        Standard dimension of sample

        75*150mm or 75*300mm

        water tank depth

        25mm,automation

        Effective radiation area

        900*210mm

        UV Wavelength

        UV-A: 315-400nm/ UV-B: 280-3150nm/UV-C:< 280

        Test time

        0-999H adjustable

        Outer /Inner material of box

        SUS304

        Black Panel Temp

        40ºC-65ºC

        power supply

        380V

        Power Output

        4KW

        Standard Configuration

        A roll of wet bulb gauze,Three insurance,16th Lamp. one radiometer

        Standards Applied

        ASTM D4329.D499.D4587.D5208.G154.G53.ISO4892-3.ISO11507.EN534.prEN1062-4.BS2782.JIS D0205.SAE J2020
