        Ice Water Thermal Shock splash water Test Chamber


         This test simulates a thermal shock induced by ice water and applies to products in the splash areas of the vehicle. The purpose of this test is to simulate ice water splashing over a hot system/component. This happens when driving on wet roads during the winter. Failure modes are mechanical cracking of materials or seal failures caused by different temperature expansion coefficients. An additional failure mode not addressed in 5.3.2.1 is a loss of tightness and the intrusion of water into the system/component.










        Description



        Product Description：

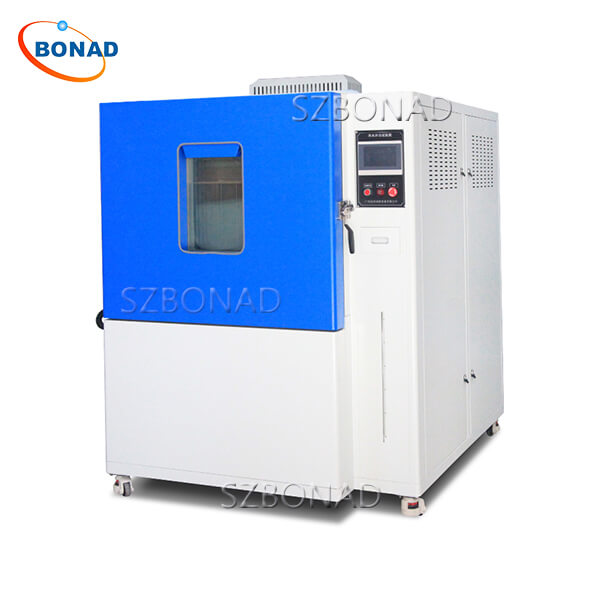

        ISO 16750 Ice Water Thermal Shock splash water Test Chamber
        Type：BND-BSFJ-1000L

        Test Purpose:
        This test simulates a thermal shock induced by ice water and applies to
products in the splash areas of the vehicle. The purpose of this test is to
simulate ice water splashing over a hot system/component. This happens when
driving on wet roads during the winter. Failure modes are mechanical cracking of
materials or seal failures caused by different temperature expansion
coefficients. An additional failure mode not addressed in 5.3.2.1 is a loss of
tightness and the intrusion of water into the system/component.

        Test standards:
        ISO 16750-4: 2006/GB/T 28046.4-2011

        Structural parameters
        External dimensions
        About 1500*deep 1900*high 2250 mm
        Inner box size
        About 1000*Inlet depth 1000*height 1000 mm
        Number of spray holes
        1 sewing spray torion;
        Spraying position
        On the right side of the inner box
        Spirit and sample distance
        325 ± 25mm (manual adjustment)
        Function parameters
        High temperature room temperature range
        RT+10℃～150℃
        Heating rate
        RT+10℃～150℃≤45min
        Water temperature control range
        （0～+4）℃
        Cooling rate
        25℃～2℃≤60min
        Water spray
        （3～4）L/3S
        Test liquid values
        Remove water or+3%Arizona fine dust
        Spray time per cycle (30 minutes)
        3s, interval time: interval time: 29m57s (touch screen setting)
        Number of cycles
        100 times (touch screen setting)
        Electrical parameter
        Device power supply
        380V/50Hz, three -phase and five -line system
        equipment power
        12.0KW
        Safety protection function
        Leakage protection, water deficiency protection, short circuit protection, phase sequence protection, heat overload protection
