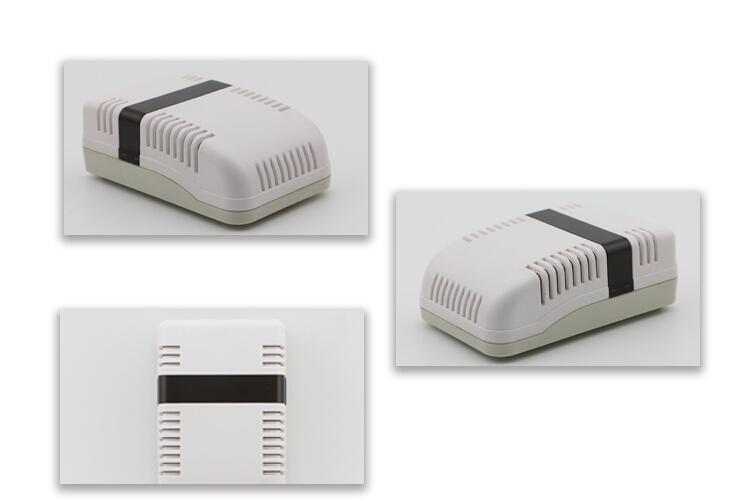

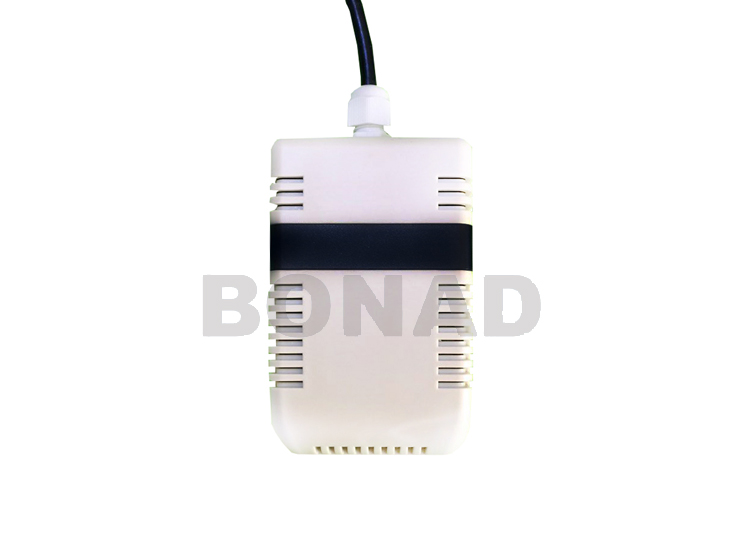

        CO2 Gas Concentration Sensor/ Carbon Dioxide Transmitter


         CD10 carbon dioxide transmitter uses dual-channel non-dispersive infrared gas detection technology detection principle, built-in temperature compensation function, with high sensitivity, oxygen-free gas dependence, long life, high precision, good stability, good repeatability, is not affected by other gas (CH4, H2S, SO2, N2, O2, etc.) . Can be widely used in meteorological, environmental, agriculture, aquaculture, greenhouse, laboratory, HVAC refrigeration control and other types of carbon dioxide concentration measurement of the occasion.










        Description



        Product Description：
        Name：CO2 Gas Concentration Sensor/ Carbon Dioxide Transmitter
        Type：BND-CD10

        Appliance :
        CD10 carbon dioxide transmitter uses dual-channel non-dispersive infrared gas
detection technology detection principle, built-in temperature compensation
function, with high sensitivity, oxygen-free gas dependence, long life, high
precision, good stability, good repeatability, is not affected by other gas
(CH4, H2S, SO2, N2, O2, etc.) . Can be widely used in meteorological,
environmental, agriculture, aquaculture, greenhouse, laboratory, HVAC
refrigeration control and other types of carbon dioxide concentration
measurement of the occasion.

        Characteristics :
        (1) dual-channel non-dispersive infrared gas detection technology, the sensor
life of up to 10 years. Anti-water vapor interference, not poisoning.
        (2) dual-channel measurement method, the effective elimination of changes in
the external environment conditions on the impact of measurement.
        (3) breathable structure to ensure rapid response to changes in
concentration.
        (5) high precision, fast response, good interchangeability, reliable
performance.
        (6) perfect protection circuit with a variety of signal output interface
optional.

        Technical Parameters
        Output Signal
        Voltage Output0-2V
        （The output impedance of approximately 0 Euro）
        Current output4-20mA
        Load Resistance
        <500ohm）
        RS485 Interface
        Modbus Protocol
        Supply voltage
        12-30V/ DC
        12-30V/DC DC
        12-30V/DC DC
        Static power
        60mA@24V DC DC
        80mA@24V DC DC
        (Two current output channels are 20mA)
        60mA@24V DCDC
        CO2 range
        0-1000ppm
        0-2000ppm
        0-5000ppm
        0-10000ppm（1%）
        0-30000ppm（3%）
        0-50000ppm（5%）
        The measuring principle and measuring method
        Carbon dioxide infrared dual channel measurements
        Preheating time
        3 mins
        Response time
        90 S (90%)
        Level of protection
        IP54
        Operating Environment
        Working temperature:-20～60 ℃
        Working Humidity :0～95% RH （no freezing）
        Installation Method
        Install with wall
        The default cable length
        1M, can be customizable
        Connection
        Preloaded cold terminal
        Size
        130*70*42mm

        Code Choose:(Please tell us which model would you need to buy?)
        Code number
        Code
        Code Description
        Code 1:
        Products
        MEC10
        CD10 carbon dioxide transmitter
        Code 2: measurement parameters
        A
        carbon dioxide (CO2)
        Code 3:
        carbon dioxide Range
        A
        B
        C
        D
        E
        F
        0-1000ppm
        0-2000ppm
        0-5000ppm
        0-10000ppm（1%）
        0-30000ppm（3%）
        0-50000ppm（5%）
        Code 4:
        display
        A
        B
        With display
        Without display
        Code 5:
        supply voltage
        A

        12-30V DC
        Code 6:
        Output signal
        A
        B
        C
        D
        E
        F
        Voltage Output 0-2V
        Current output 4-20mA
        RS485 interface ,Modbus Protocol
        RS485 interface,Modbus Protocol & Voltage Output0-2V
        RS485 interface,Modbus Protocol & Current Output4-20mA
        custom design
        Code 7:
        line length
        001
        XXX
        1M
        custom design
        Code example:
        carbon dioxide transmitter, range:0-5000ppm,with display,12-30V DC,RS485 interface,Modbus protocol,
        5M cable. Code sample ：BND-CD10 - A C A A C 005
