        Soil PH Sensor BND-PH10


         PH10 soil pH (PH value) sensor, to solve the traditional soil PH to be equipped with professional display instruments, cumbersome calibration, integration difficult, power consumption, expensive, carrying difficulties and other shortcomings. Can be widely applied to agricultural irrigation, flower and horticulture, meadow pastures, soil testing, plant culture, scientific experiments and other fields. PH10 low power consumption, for long-term uninterrupted monitoring. The sensor has the following features:










        Description



        Product Description：
        Name：Soil PH Sensor
        Type：BND-PH10
        PH10 soil pH (PH value) sensor, to solve the traditional soil PH to be
equipped with professional display instruments, cumbersome calibration,
integration difficult, power consumption, expensive, carrying difficulties and
other shortcomings. Can be widely applied to agricultural irrigation, flower and
horticulture, meadow pastures, soil testing, plant culture, scientific
experiments and other fields. PH10 low power consumption, for long-term
uninterrupted monitoring. The sensor has the following features:

        · New soil pH sensor for online real-time monitoring of soil pH.
        Adopt international advanced solid dielectrics and large areas of PTFE liquid
junction, easy to plug, maintenance-free.
        · Waterproof seal, high integration, small size, low power consumption, easy
to carry, outdoor use.
        High precision, fast response, good interchangeability and reliable
performance.
        Complete protection circuit and a variety of signal output interface
optional.

        Technical parameters
        Signal output type
        Voltage output 0-2V
        (Output impedance of about 0 Ohm)
        Current output 4-20mA
        (Load resistance <500ohm)
        RS485 interface
        Modbus protocol
        Supply voltage
        3.6-30V/DC
        12-30V/DC
        3.6-30V/DC
        Static power
        6mA@24V DC
        30mA@24V DC
        (Current output channel is20mA)
        6mA@24V DC
        PH value range
        Range: 0-14PH, resolution: 0.01PH, accuracy ± 0.1PH
        Temperature range
        Range: -40 ~ 80 ℃, resolution: 0.1 ℃, accuracy: ± 0.5 ℃
        Degree of protection
        IP65
        Operating environment
        -40~85℃
        Default cable length
        PH probe cable 5 m
        Transmitter cable 2 m
        Cable length can be customized
        Dimensions

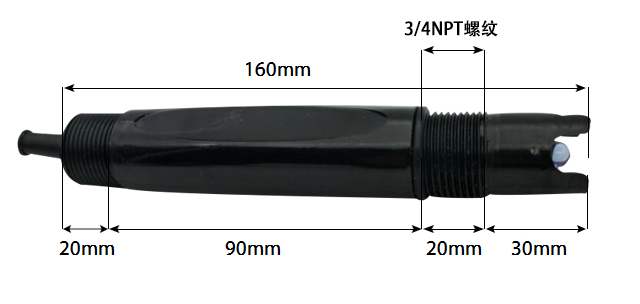

        PH sensor - probe part size: length 160mm, diameter 30mm
        PH sensor - probe part size: length 116mm, diameter 30mm

        PH sensor -the size of the Transmitted
        Select the order
        Code No.
        code
        Explanation
        Code1：MODEL
        PH10
        PH10 PH soil sensor
        Code 2：
        Supply voltage
        A
        B
        3.9-30V DC
        3.3-16V DC
        Code 3：
        output signal
        A
        B
        C
        D
        E
        F
        G
        Voltage output 0-2V
        Current output 4-20mA
        RS485 interface, Modbus protocol
        RS485 interface, Modbus protocol & voltage 0-2V output
        RS485 interface, Modbus protocol & current 4-20mA output
        SDI-12 interface
        customize
        Code 4：
        Cable length
        002
        XXX
        PH sensor cable 5 meters, transmitter cable 2 meters
        PH sensor cable 5 meters, custom transmitter cable, XXX for any line length (unit: m)
        Model example:
        PH10 soil PH sensor, 3.9-30V DC, RS485 interface, Modbus protocol, PH sensor cable 5 m, transmitter cable 2 m. The selection code is: PH10 - A C 002
